HOLZ-HER TECTRA 6120 classic: Your reliable partner for optimum cutting

The universal beam saw/panel saw for woodworking and panel processing

Thanks to its high acceleration values and feed rates, the horizontal panel saw TECTRA 6120 can process even large quantities of panels rationally. This versatile saw is available with various cutting lengths and cutting widths, allowing it to be adapted to highly varying applications as a custom solution.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER TECTRA 6120 classic offers

  • Saw Blade Protrusion up to 82 mm
  • Sawing Unit: up to 11 kW
  • Cutting Lengths: up to 4,400 mm
  • Cutting Widths: up to 4,300 mm

Technical Details

The CUT CONTROL 2 control package

Das leistungsstarke Softwarepaket für große HOLZ-HER Industriesägen
Grafische 3D-Bedienoberfläche für intuitive Bedienung und Maschinenablauffunktion

The high performance software package for large HOLZ-HER TECTRA beam saws

The control is decisive for the power output of a state-of-the-art pressure beam saw. The TECTRA series is controlled by our CUTCONTROL 2 and the preinstalled EASY-PLAN and OPTI-CUT software packages.

Everything at a glance:

  • Standard, large 19" monitor (with optional touchscreen) and large, clearly arranged buttons make it possible to machine absolute, series and format cuts with integrated groove.
  • OPTI-CUT and EASY-PLAN optimization software preinstalled at the factory.
  • Individual jobs can be assigned a priority at any time, job programming parallel to cutting.
  • Graphic 3D user interface for intuitive operation and machine sequence functions for NC cutting.
  • Program-controlled measurement of reference dimensions when saw blade is changed.
  • Information display indicating running meters for main and prescoring saws.
  • Individual adaptation of function and parameter settings.
  • Label printer (optional) for barcode labels
    (also data matrix barcode incl. software module for creating labels).

Solid supporting tables

Stabile Auflagetische für schonendes Handling Ihres Plattenmaterials

High functionality – perfect ergonomics

The TECTRA meets the highest demands in terms of its technology and equipment.

  • For easy and gentle handling of your workpiece.

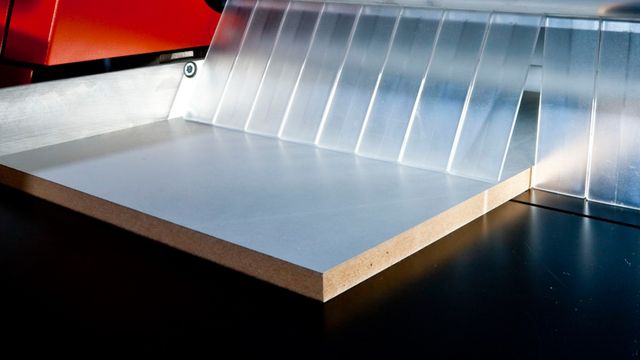

  • The air cushion tables never distort, even under heavy panel packages. Another optional feature includes long panel formats up to 2,400 mm.
  • The support tables can be moved for workpiece with small dimensions or to obtain additional space (optional).

The sawing unit of the TECTRA series

Perfektes Kraftdreieck an der Schnittlinie für dauerhaft ideale Sägeleistung
Automatische, stufenlose Schnitthöhenverstellung für einen optimierten Sägeblattüberstand und somit für eine saubere Schnittkante.
Bidirektionales Nuten für einen schnellen Zyklusablau

High power – extremely smooth operation

Optimized, torsionally rigid cast design, as well as use of linear guides guarantee perfect cutting results. Perfect power triangle at the cutting line for permanently ideal sawing performance thanks to sophisticated design of the sawing carriage guide and maintenance-free rack-and-pinion drive.

  • Main sawing motor 11 kW - for optimum sawing capacity for stacks or high speed rough cuts - max. saw blade protrusion of 82 mm.
  • Sawing carriage - with a saw blade diameter of 350 mm, the automatic, infinite cutting height adjustment ensures optimum saw blade protrusion for cleanly cut edges.
  • Motor-driven groove height adjustment - adjustable groove depth from 0 - 30 mm programmable on control and optimization.
  • Bidirectional grooving program in Fast Cut Mode (FCM) - Guarantees shortest possible cycle times for grooving - grooving is also accomplished during sawing carriage return!
  • Automatic cutting length limitation - A proximity-type optical feature recognizes the end of the workpiece - eliminating unnecessary sawing carriage travel, especially for manual cuts.
  • Optimized automatic cutting length feature - The sawing carriage is controlled by the optimization feature - the sawing carriage is prepositioned beneath the panel, the start and end of the cut are calculated, paths without cutting are traversed at maximum speed.
  • Electrically adjustable prescoring saw - Allows simple and perfect adjustment of the prescoring saw on the monitor, in the shortest possible time, with minimum effort.
  • High performance postforming unit (optional) - High performance postforming unit for tear-free cutting of postformed and other edges up to a panel thickness of 50 mm.
  • Quick-change clamping system for main and prescoring saws - Ensures precisely clamped saw blades and extremely short standstill times for changing saws.
  • Central, traveling evacuation - Dust is picked up precisely where it is produced.

Freely programmable rip fence

Werkstückspannzangen in schwimmender Ausführung

Stable, welded construction with precision, hardened linear guides ensure precise, smooth running. Direct rack-and-pinion drive and proximity-type sensor for absolute dimensions guarantee maximum positioning accuracy. Valid. Floating-type workpiece clamps compensate for tension in the panel stacks toward the top.

The 'classic' workpiece clamps

Die schwimmend gelagerten Werkstückspanner gleichen Unebenheiten in den Platten/Paketen aus.
Für überfurnierter Teile sind optional gesteuerte Anschläge erhältlich
Die Spannzangen fahren in den ausgesparten Druckbalken ein.

Perfect hold - the classic workpiece clamps

The TECTRA 6120 classic has the first three workpiece clamps assembled closely, specifically for strip cutting. All clamps are mounted floating and can compensate for irregularities in panels/stacks by means of a linear guide. For precise cutting on unveneered workpieces, optional controlled trimming stops are available.

Remnant cutting device for division without remnants. The clamps retract into the grooved pressure beam. Panels can be used completely during processing.

Remnant cutting device integrated into the pressure beam

Remnant cutting device

Remnant cutting device for division without remnants. The clamps retract into the grooved pressure beam. Panels can be used completely during processing.

Optimization module EASY-PLAN

Die serienmäßig installierte Optimierungssoftware EASY-PLAN

EASY-PLAN – the name is the program

The EASY-PLAN optimization software installed as a standard feature provides all functions, such as:

  • Entry of material data and parts list data
  • Job summary
  • Cutting plan survey for optimized jobs (representation at one level)
  • Material-related result display in graphic form.
  • Display provides information on required material formats, panels and remaining formats per job.
  • Complete jobs can be reset and booked back into the parts list at any time.

The material data entry provides information on length, width and thickness of the material, quantity present in stock, turnability in consideration of grain pattern, material designation, type number and trimming. The parts list data includes the element number, position number, quantity, length and width.

Optimization module OPTI-CUT

OPTI-CUT dient zum Anlegen, Verwalten und Optimieren von Aufträgen.

OPTI-CUT – makes your work even easier

OPTI-CUT serves for laying out, managing and optimizing jobs. The integrated OPTI-CUT optimisation software can also be purchased as a combination package – with machine and office version (OPTI-BASE).

  • The software supplies current job information for NC cutting.
  • An additional module imports parts lists from user programs.
  • Simple configuration of all system settings
  • Material-related result display of optimized parts lists in graphic form
  • Layout and management of edging lists with predefined edging recommendation lists
  • Defined cutting length adaptation from the software reduces cycle times decisively.

Optimization module OPTI-PRO

Die Profi-Optimierung im Komplettpaket mit einer Vielzahl von zusätzlichen Modulen.

OPTI-PRO – premium optimization

The professional optimization in one complete package with a variety of additional modules. This optional optimization package for sawing software is equipped for high speed data input as well as simple transfer of cutting data from branch or ERP programs via CSV interface. For example, the OPTI-PRO can calculate cutting times and take over edging material management for you. Naturally, the block part module also allows representation of furniture fronts. Other high performance features include:

  • Job management
  • Material and coating management
  • Data migration
  • Configuration
  • Display of results
  • Material booking
  • Edging and grooving entries
  • Use of cuts
  • Block part optimization
  • Edging calculation, data migration
  • Export of all data
  • Cutting time calculation
  • Label printout in office
  • Filler parts
  • Bar optimization
  • Collective jobs
  • Second license

Technical Details

Ein durchgängiger Maschinenverbund erlaubt Ihnen eine hoch effiziente Fertigung

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Der ECO Mode hilft dabei Strom und Energie zu sparen.

Energy savings made easy

The intelligent ECO MODE energy management for HOLZ-HER pressure beam saws not only helps preserve our environment - it also saves you money.

Learn more


References


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Brochure TECTRA 6120 (PDF, 5 MB)

Technical data

Open table
