HOLZ-HER PRO-MASTER 7125: The High Performance 5-Axis Machining Center

The PRO-MASTER 7125 opens up nearly unlimited possibilities to users for machining wood and plastic.

The PRO-MASTER 7125 opens up nearly unlimited possibilities to users for machining wood and plastic. The MANUAL, X-MOVE TABLE and fully automatic VARIO-TABLE versions allow the performance range of this 5-axis power package to be adapted modularly to virtually all operating situations.

Mechanically, the 5-axis machining center from HOLZ-HER is distinguished particularly by the perfected dynamic technology of its gimbal-mounted 5-axis head and high-end processor. The resulting interpolating motions ensure extremely fluid operating sequences reflected by perfect workpiece surfaces and short processing times.

The unique PRO-Torque technology used for the optional 17 kW spindle offers extremely high torque values over the entire speed range as well as a software controlled "interlock" feature for the A and C axes, which is particularly important for line-by-line milling at extremely high feed and cutting rates. The compact, powerful and fully interpolating machining head is equipped with ceramic bearings and liquid cooling for extreme mechanical loads and, naturally, has an interface for mounting changeover equipment.

The 5-axis series is completed by a versatile and comprehensive range of optional equipment to satisfy all desires, allowing the CNC machining center to be configured optimally for applications in the fields of furniture production, staircase construction and model making as well as machining solid wood.


Technical Details

Power 5-axis cutter unit

Power 5-axis cutter unit
Power 5-axis cutter unit
Power 5-axis cutter unit

The "fifth dimension" in woodworking

The gimbal-mounted machining head with up to 17 kW (standard 12 kW) ensures precise production of complex curled or curved parts such as stair railings or furniture and model shapes with complicated design. The compact, powerful and fully interpolating machining head operates at speeds up to 24,000 rpm; its ceramic bearings and liquid cooling allow it to work under extremely high loads.

The special feature of the optional 17 kW spindle (S6) is the PRO-TORQUE technology, which automatically locks the A and C axes mechanically, allowing extremely high torque at the spindle. Optimum evacuation is achieved by the evacuation hood with 8 adjustment positions and an optional chip conveyor.

CabinetControl - for programming your furniture simply

Simple furniture programming
The high quality, user-friendly machine control from HOLZ-HER
Generates CNC machining program automatically at the touch of a button

CabinetControl – software for simple furniture designing

Our high quality, user-friendly HOLZ-HER machine control system is an integral part of the machine’s design. The equipment package includes CAMPUS / NC Hops with office and machine license and full-fledged aCADemy CAD software. The integrated CabinetControl Base furniture design software rounds out this premium package. This offer provides the prerequisites for effective machining and convenient operation with barcode interface, manual control unit, import features and much more.

  • CabinetControl Base included as standard feature in software package.
  • Design of furniture.
  • Views can be represented in 2D or 3D.
  • Quick adaptation to individual desires of furniture buyers.
  • Perfect presentation of furniture.
  • Automatic completion of cutting plans.
  • Generates CNC machining program automatically at the touch of a button.
  • An optional professional version, the CabinetControl PRO, is also available with library, calculation, data transfer to pressure beam saws, etc.
  • Also ideal for planning kitchens and rooms.

CAMPUS 5-axis module - 3D simulation

CAMPUS 5-axis module for simultaneous cutting

3D material removal simulation as standard feature

Even the basic versions of the PRO-MASTER machines are equipped with our mature 3D material removal simulation feature. The CAMPUS 3D machine simulation can be ordered as an optional feature. This offers:

  • Collision monitoring
  • Three-dimensional simulation of machine motions and material removal on workpiece
  • Graphic representation of machining head, tool and tool collet, table and clamping device.

Genuine, high speed, 5-axis cutter with CURVE 3D

For 5-axis power users, the option CURVE 3D Performance package offers additional advantages. This allows the first class performance of the 5-axis spindle to be used for effective high speed cutting with perfect results. The CURVE 3D module is also ideal for increasing the power in combination with CAD/CAM software from other suppliers and offers perfect spline interpolation.

CAMPUS 5-axis module for simultaneous cutting

The NC HOPS supplement module supports interpolating 5-axis machining in many areas such as:

  • 5-axis simultaneous cutting.
  • Support of 5-axis interpolation with top and bottom guide curves (simultaneous machining).
  • Two contours on defined layers are interpreted as 5-axis machining.

Integrated drilling head

Optional integrated drilling head

The PRO-MASTER is perfectly equipped with variable drilling heads.

16-Spindle version (standard)

  • Drilling unit with 10 vertical spindles (X = 6 / Y = 4)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction).
  • Integrated grooving saw in X direction.
  • The pressure booster included as a standard feature provides even more power for the drilling unit.

24-Spindle version (optional)

  • Drilling unit with 18 vertical spindles (X = 11 + 2 / Y = 6)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction).
  • Integrated grooving saw in X direction.
  • The pressure booster included as a standard feature provides even more power for the drilling unit.

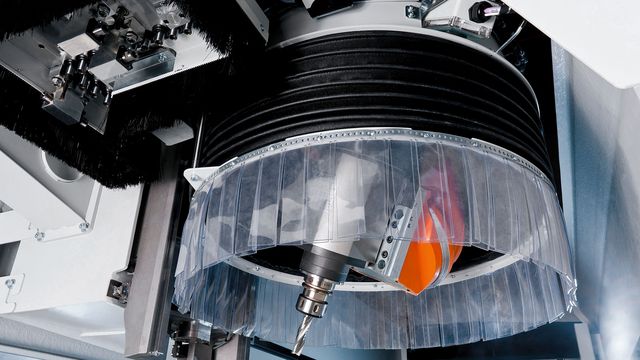

Machining head - optimized for practice

Drilling, sawing, cutting, grooving – the PRO-MASTER machining head

Drilling, sawing, cutting, grooving – the machining head on the PRO-MASTER series is equipped for multifunctional use and is perfect for rational production of simple and complex case parts in continuous operation.

The integrated and compact design makes this machining head a paragon for dynamic action, acceleration and positioning accuracy. Even in the basic equipment, the PRO-MASTER series offers a wide machining spectrum.

Standard console table

Standard console table
125 millimeter high suction cups
Pneumatic lifting and lowering charging aids

Console table – the workpiece support for optimum work progress

Precise machining requires exact and secure positioning of the workpieces. For this purpose, the PRO-MASTER series is equipped with a console table. It offers maximum flexibility in all areas of machining; even workpieces with complicated shapes can be clamped quickly and easily.

  • Solid consoles with single circuit vacuum system, six easily movable cross-members – with pneumatic clamping feature in X direction. Both right-handed and left-handed users can easily operate the consoles pneumatically at the touch of a button.
  • Measuring tapes in the X direction for quickly positioning consoles, laser pointers for precise position of suction cups. Other consoles and suction cups available as options.
  • 125 Millimeter high suction cups provide machining head with sufficient clearance on all sides.
  • Moving stops, eccentric in hardened guide bushings. Stops can be lowered pneumatically.
  • Four pneumatically operated charging aids can be raised and lowered to position heavy workpieces easily. Additional charging aids available as options.
  • Two large surface pushbuttons for clamping.
  • Side consoles for storing suction cups not required at the moment.
  • Additional processing fields for higher capacity (optional).
  • Individually switchable vacuum zones prevent vacuum losses.
  • High performance vacuum pumps – 100 m³/h.
    Optional: Vacuum pumps for 140 m³/h and 250 m³/h.

Highly flexible machining tables

Highly flexible machining tables
Highly flexible machining tables
Highly flexible machining tables

X-MOVE table

Standard features on the X-MOVE table include six consoles with two suction cups each. The consoles are moved automatically, optionally with arrow buttons, in the X direction to the positions programmed on the control.

  • Six consoles, positionable in a motor-driven manner via a rack-and-pinion drive on hardened linear guides. (additional X-MOVE consoles available as optional features)
  • Variable for equipping with suction cups or frame clamps.

VARIO table

Standard features include six consoles, each having three displaceable suction cups. The entire working table can be changed over within a few seconds. Consoles and suction cups are positioned automatically via the control system.

  • Six consoles, positionable in a motor-driven manner via a rack-and-pinion drive on hardened linear guides.
  • In each case, three suction cup mounts per console, in each case one vacuum suction cup with sensing valve (second vacuum suction cup available as an option).
  • Suction cup holders positionable in a motor-driven manner via a rack-and-pinion drive on hardened linear guides (other suction cup holders available as options).

High-flow nesting table

Nesting technology for rational production. With the nesting process, a porous protective panel – usually a thin MDF panel – is held down on the machine table by a vacuum. It provides a large surface for suction and serves to support the workpieces to be processed. Nesting technology allows optimized processing and cutting of panel materials.

  • For formatting nesting cutting plans on the nesting table.
  • Workpieces can be processed with manually positioned suction cups.
  • The HOLZ-HER nesting table has small matrix dimensions – of only 50 mm – to ensure maximum vacuum flux over the entire table surface.

Well-thought-through workpiece clamping

Variable system of matching workpiece clamps

CNC machining centers are becoming ever more efficient with the use of intelligent software combined with proven technology. One-piece complete production is now the measure of all things. All parts must be produced to the highest quality standards and with all conceivable processes in a single pass. The concept of "more product capability" opens new horizons. In addition, CNC machining also ensures the resurrection of traditional woodworking joints. Where earlier manual methods involved high-cost processes and large tolerances, these days it's only a matter of a few clicks of the mouse and complex joints are created to the highest levels of precision. In this way, mortised frame doors and swallow-tailed connections are being rediscovered.

Variable system of matched suction cups and workpiece clamps for surface machining including straight and curved frame parts.

Intelligent solid wood machining

Perfectly equipped for custom and highly varying machining

The PRO-MASTER 71 and 72 series offers virtually unlimited possibilities for machining. Constructed for the most highly demanding work, the solid and well-thought-out construction of both machines represents the latest in modern and application-friendly industrial design.

The extreme machining lengths in the X direction make the console table on the CNC machining centers ideal for machining long parts such as components for stairs, winter gardens, etc. Even large door components can be machined in a highly efficient and trouble-free manner in pendular operation. With 1,400 mm or 1,600 mm in the Y direction as well as a Z stroke of 565 mm, both of these machine series are perfectly equipped for individual and highly variable machining operations.

Plenty of space for all tools.

Traveling disk tool changer with 12 or 18 tool positions
14 or 16-position linear tool changer
Plenty of space for a wide variety of tools

The traveling disk tool changer with 12 or 18 tool positions ensures short changeover times and maximum productivity. A special pick-up tool changer is available for saw blades with dia. up to 350 mm.

Another supplementary feature is a pick-up tool changer with two positions for large angle gears as well as 14 or 16-position linear tool changer for an extensive range of tools.

Tool-intensive applications, such as are frequently required for window construction, are also possible with an optional shuttle type tool changer with up to 60 tool positions.

Innovative changeover units

Changeover units for highly varying applications

Your advantage for high product quality

A variety of changeover units for highly varying applications is available for all machines in the PRO-MASTER series. These range from conventional multi-spindle machines, lock box and sawing units to special applications such as hollow cutting chisels and cutting units for machining foam materials, etc.

Angular slewing gears with angle display and central angle adjustment are available for precision angle cuts and holes.

Lock case cutters for professional door production

Lock case cutters for professional door production
Effective machining on door and frame components

Lock case cutting

High performance cutting motors on the optional horizontal cutter unit make the PRO-MASTER series a must for professional door producers. On the 5-axes version, this work is of course accomplished by the cutter unit.

  • HOLZ-HER also offers a wide matching selection of reliable, high performance changeover units for all types of applications.

Laser pointers as standard feature

Laser pointers on left and right of machining head
Laser pointers on left and right of machining head
Laser pointers on left and right of machining head

Laser pointers for exact position of the suction cups or for tracing the workpiece contours, attached on the right and left sides of the machining head.

Contour laser – the complete positioning solution

Contour laser – the complete positioning solution
Contour laser – the complete positioning solution

Contour laser – projects entire workpiece contour and all required vacuum suction cups simultaneously as well as all console positions without limitation for number of lines to be projected.

Variable safety concepts

3-field foot mats or safety bumpers

State-of-the-art safety concepts give you the choice between patented 3-field foot mats or safety bumpers. This allows you to match the HOLZ-HER machining centers individually and reliably to your operating situation.

Efficient vacuum technology

Extremely powerful and efficient vacuum pumps
ECO VAC

Extremely high performance, efficient vacuum pumps ensure workpiece is held securely. These low maintenance, dry-running pumps are also distinguished by their low noise emissions and extremely low maintenance requirements.

Moreover, our intelligent ECO VAC vacuum control uses a software program to ensure that the required vacuum power is always present when several pumps are used.

Flexible evacuation

Flexible evacuation – programmable for eight positions

Flexible evacuation – programmable for eight positions

Fully automatic positioning in eight positions on machining head, for perfect adaptation of hood to workpiece height. This guarantees optimum evacuation of chips.


Technical Details

Energy savings made easy

The intelligent ECO MODE energy management for HOLZ-HER CNC machines not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


References

HOLZ-HER product portfolio as central production pillar

Binni is one of the leading companies in the Republic of Kosovo in the area of interior furnishings such as doors and windows. Over 200 employees work in a production area of 18,000 m2 with a capacity of more than 10,000 doors per year as well as over 5,000 kitchens per year. Every year more than 50 new product are introduced on the market. The company exports to various European countries such as Switzerland, Germany, Belgium or the Netherlands.

Binni was founded in 1989 and represents the continuation of a family tradition. The business model combines traditional Albanian wood and furniture craftsmanship with innovative processes and technologies meeting international standards.

This international standard is guaranteed by use of highly varying HOLZ-HER machines, for a majority of the company’s production. In addition to two horizontal panel saws, the company uses a vertical EVOLUTION 7405 CNC and a PRO-MASTER 7125 CNC machining center. A SPRINT 1327 edgebander is also in use. The HOLZ-HER machines are a significant production factor, which have become indispensable for this major company’s everyday business.

The video pictured shows an except from Binni’s image video. The complete video can be view at the Binni Youtube Channel.

High quality Russian work supported by HOLZ-HER

HSR is one of Russia’s leading manufacturers of furniture and interior furnishings. The company’s headquarters is in Khimki, located to the north of Moscow. From here the company manages seven other branch facilities in Russia. The range of materials to be processed is broad, going from solid wood, artificial stone and veneer to synthetics and laminate chipboard. This high quality Russian manufacturer focuses on production of equipment for offices and retail stores as well as residences and hotels.

In the area of furniture and interior furnishings HSR has made a name for itself and has more than enough well known references for proof. The company’s satisfied customers include LG, Swatch, Apple, Louis Vuitton and World Disney as well as Procter & Gamble. From planning to custom production the company supervises its customers, ensuring optimum quality from design to complete functionality.

For its precision, high quality work, the company uses machines form the Swabian quality manufacturer HOLZ-HER. The machines in use include a 5-axis PRO-MASTER CNC machining center and an AURIGA 1307 XL edgebander.

The video shown is an excerpt from an image video made by HSR. The complete video can be viewed at the HSR Company website at

The 5-axis machine from HOLZ-HER was an absolutely great decision

Reference 5-axis CNC Pro-Master 7125 from HOLZ-HER

Max’s Furniture Workshop is a carpentry shop specializing in construction of furniture and interior furnishings. Two years ago, the 10-man company managed by Maximilian Sammer took a step typical today: They invested in a machining center. In the meantime they know: “The 5-axis machine from HOLZ-HER was an absolutely great decision.”

Profitable production. After working with the Pro-Master 7125 for two years, Sammer is convinced today: “The decision we made was absolutely right”. In addition to daily work, this is demonstrated by special applications such as building solid wood shelves for wine bottles, produced in the form of a wooden disk with concave fillets centered around the middle. A cylinder in the center of the disk was drilled to fit the bottle necks. “The 5-axis machine allowed us to cut the individual concave fillets as well as produce the cylinder with a minimum of work”, explained Schwarzmeier. “With any other machine we would have needed an angle attachment again.”

In his opinion this is also one of the greatest advantages of the 5-axis machine: You save tools and angle attachments. As planned. And beside that the machining work is a great deal faster today. “We used to have to put a part through a machine with one tool three or four times. Today we do everything in one pass”, he asserted. “Production of parts, for which we had to construct templates, used to require a great deal of time. Today we have them finished in a wink of the eye. And the precision is even better!”

The higher performance of the machining center has allow Max to take a great step forward in the production of interior doors as well. “We don’t build standard doors, we provide custom solutions: flush with the wall, large surface, with Tectus hinges”, continued Sammer. “The 7125 makes it easy. And the handling is also greatly improved: We used to have to carry the door back and forth. Today we set it on the machine once. Then it is sanded and painted. Finished.”

In the meantime it is also considerably easier to produce parts damaged during installation or with flaws. “These parts are already programmed, so the 5-axis machine gives us a gigantic advantage”, confirmed Sammer. “All totaled, we produce our parts more profitably today. Previously, when we produced a kitchen on conventional machines, the follow-up calculation usually turned out very poor. Now with CNC our profitability has increased considerably.

Further images

Reference customer Max's Furniture Workshop for Pro-Master 7125 CNC machining center

Maximum precision with 5-axis CNC

Reference 5-axis CNC from HOLZ-HER CNC - the Promaster 7125

The company Ebert Schreinerei & CNC-Technik in Heilbronn has been a convinced HOLZ-HER customer for many years. Even before the carpentry shop started using the new PRO-MASTER 7125 5-axis machining center in 2013, a 7123 CNC machine from HOLZ-HER was already in use.

This is one of the reasons why the present 5-axis CNC machine forms the basis for daily machining work on various materials.

At the Ebert Carpentry Shop the main work consists of milling, drilling, grooving and sawing to format. Another basic competency is setting angular cuts at the many required angles on the state-of-the-art 5-axis CNC machining center, which allows maximum machining precision. Examples are furniture parts, door fronts and shelves as well as complete cabinets. Moreover the CNC machine also allows production of samples. The carpentry shops range of work also includes generation of free shapes as well as interior and exterior radiuses with maximum geometric precision.

All series and single parts are produced on the 5-axis CNC machining center. Processing includes the following types of materials:

  • Wood materials
  • Solid wood
  • Composite materials
  • Mineral materials
  • Various plastics and synthetic materials

The CNC milling equipment ensures reproducibility and subsequent production at any time - an advantage the Ebert Carpentry Shop appreciates greatly.

Further images

Experience with HOLZ-HER CNC 5-axis from HOLZ-HER - positive experience with CNC machining center
Experience with HOLZ-HER CNC - examples of work, wood processing
Experience with HOLZ-HER CNC - examples of work, wood processing, precision work

State-of-the-art wood processing with digital CNC technology

HOLZ-HER reference CNC Böhme Carpentry Shop

Politics as well as the chamber of commerce support innovate craftsmanship in Sachsen-Anhalt

State-of-the-art wood processing with digital CNC technology

Digital control for machining materials and in construction processes is advancing with increasing perfection. Particularly middle sized companies remain competitive and gain market advantages though use of CNC technology. This was demonstrated by the visit of Sachsen-Anhalt’s Minister of Economic Affairs, Hartmut Möllring, at the cabinetmaking shop of Rainer Böhme in Sangerhausen near Halle on January 20, 2016. Here politics and the chamber of commerce are cooperating in a common initiative to put public focus on innovative companies. The heart of production at Böhme is the PRO-MASTER 5-axis CNC machining center from HOLZ-HER.

The visit at the Böhme Cabinetmaking Shop was the kickoff to a series of events for strengthening all 14,700 handicraft business in the chamber region of Halle/Saale. One of the messages for the structurally weak, one-time mining region: Industry 4.0 leads to success in medium sized craft shops. An innovative spirit and good financial planning make the investment in CNC machining for derived timber products profitable very quickly.

“In the ever-tightening European competition, start-of-the-art technology secures advantages for companies; But the link between traditional craftsmanship and state-of-the-art technology in our crafts shops makes the decisive difference”, emphasized Thomas Keindorf, President of the Halle/Saale Chamber of Commerce. This is something Master Cabinetmaker Rainer Böhme has already recognized: “In the past few years we have examined the requirements of our customers precisely and determined that, in spite of IKEA and similar retailers, customers want personal consultation.“

Stylish, custom craftsmanship

Rainer Böhme’s Cabinetmaking Shop has a staff of twelve specializing in high standard interior finishing as well as construction and repair of staircases in addition to producing doors and windows. Here customers receive comprehensive consultation considering all aspects of preserving historically valuable features and other local stylistic elements - particularly in combination with restoration and other types of work in older homes. Investment in a digital machining center was particularly advantageous for such high quality areas with many custom requirements.

The final choice was a PRO-MASTER 7125 5-axis CNC machining center from HOLZ-HER. This acquisition has made it possible completely digitize nearly all production processes today. The cabinetmaking shop - founded in 1993 on the grounds of a one-time shift installation for the local mining company - thus became a pioneer in the process of increasing digitization, which has had a tremendous impact on this traditional craft.

More powerful, faster all rounder with five axes

HOLZ-HER promises PRO-MASTER 7125 users “virtually unlimited capabilities” for machining wood and synthetic materials. And the performance spectrum of this 5-axis power package is laid out for higher-than-average loads. Highly dynamic drives and control technology go beyond simply brilliant results, providing users with extreme acceleration values - and all this on a machining surface with optional dimensions from 3,620 to 5,420 mm (X axis) and machining depth of 1,350 mm (Y axis), which can be reached with all drills and attachments. The working height of 210 mm from the top of the suction cups is enormous and, according to the manufacturer, unique in this class. The large Z stroke of 565 mm is extremely well suited for use of long tools making the cutter unit highly flexible for universal applications.

“Edge processing, grooving, cutting and drilling - for example in stair steps or risers - are all finished completely in one work process”, explained Martin Johannes Diebes. The master cabinetmaker at Böhme operates the PRO MASTER and writes the CNC programs. The “Campus” software package integrated into the PRO MASTER is a versatile and user-friendly CNC program licensed for use in the office as well as on the machine, with CAD module and versatile macros to facilitate programming. Furniture parts as well as construction elements such as doors and windows can be programmed easily including all parameters with just a few mouse clicks.

Optimum cutting results at maximum speed

The version of the “CabinetControl” software provided by HOLZ-HER for use in the office as well as on the machine, ensures easy design of cabinets and everything else imaginable. And even the standard version of Campus with the “Academy” module offers a complete CAD program. The Campus software also offers an open interface for connection to other three-dimensional CAD/CAM programs from other leading manufacturers as well as complex 5-axis machining operations. The optional “CURVE-3D performance package” ensures optimum dynamics, best cutting results and maximum machining rates for cutting curves and three-dimensional shapes.

The Böhme Cabinetmaking Shop works with special staircase construction software from the DDX Company. For staircase work a digital measuring system is also used, allowing the data to be processed directly by the design software. “This saves us a great deal of complicated work at the construction site with templates and such”, Rainer Böhme reminisces on previous times. Digital production made it possible for us to complete a luxurious spiral staircase in a public building in Cologne with platforms and a total of 60 steps in only three weeks.

Three-dimensional process simulation

When producing individual components such as stairs or risers, the CNC processing steps an be checked with the PRO MASTER in advance on the large 19” monitor using three-dimensional process simulation. An automatic positioning feature for the consoles takes care of the preparation work for the machine table and provides additional operational reliability. An optional ceiling laser allows the position of all suction cups to be displayed in one step for optimum fixation of the work.

A large number of suction cups and variable frame clamps on the PRO MASTER ensure easy handling of highly varying workpieces. The drilling head is available with 16 spindles (standard) or 24 spindles (optional) for variable hole patterns. Both drilling units are equipped with integrated grooving saw. The tool sequence is optimized automatically by the machine software. And a traveling disk tool changer for 18 tools as well as the short clamp-to-clamp time make flexible work very easy with the PRO MASTER even with the basic equipment. Moreover up to 76 additional tool locations are offers depending on the application.

Further images

Experience with HOLZ-HER machines - customer reference CNC Promaster
Positive experience with HOLZ-HER machines
Positive experience with HOLZ-HER machines

Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

PRO-MASTER 7125 brochure (PDF, 1 MB)

Technical data

Open table
