Edgebander AURIGA 1308 XL power: Highest Degree of Automation with three Finishing Units

Highest degree of automation with three finishing units

In addition to the high degree of automation, the AURIGA 1308 XL power features fa.s.t. (set up in the gap) with 11 high speed NC servo-axes in the standard version.

Moreover the machine operates with a dynamic locking roller to ensure optimum workpiece sequencing. An optional, enhanced illumination package offers a smart LED workpiece sequence display in addition to the LED machine lighting.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

Unterschiedliche Anforderungen – unterschiedliche Preise

Der Preis für eine HOLZ-HER Maschine ist so individuell wie Ihre Anforderungen. Deshalb besprechen wir am besten kurz, was Ihnen wichtig ist – und schon bekommen Sie ein erstes, unverbindliches Angebot von uns.

* Erforderliche Felder

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER AURIGA series offers

Technical Details

iTronic for intelligent automation

iTronic operating components

1. Adaptive trimming blade

Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:

  • Always the right pressure for different types of edging
  • Prevents unnecessary vibration
  • Reduces wear

2. Automatic glue quantity control

Automatic, requirement-adapted control of glue quantity with program selection. Always optimum glue application for:

  • Various types of panels, e.g. chipboard or MDF
  • Various panel thicknesses
  • Various feed rates
  • EVA or PUR glue
  • Adaptation to processing parameters for glue from different manufacturers

3. Automatic cleaning routine

Integrated purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine with the correct quantity of cleaner, at the right temperature as well as the correct contact pressure. (Cleaning is required after 48 h = PUR reaction time).  Your advantages:

  • Best system on the market for processing PUR glue
  • PUR glue always under control
  • Avoids errors during cleaning operation

4.  Remaining glue quantity indicator

The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:

  • Operator knows how many running meters can still be produced at all times
  • Professional supervision of the cleaning process
  • Optimization of remaining quantity of glue in system at time of cleaning process.

EdgeControl - simple and intuitive

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

21.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 21.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface

Edging feed

Edging feed

Fully automatic, user-friendly feed of cut-length and coiled edging; conversion without tools. Gentle material handling with transport belts for edge feeding and light barrier for edging recognition.

Glu Jet - the flexible glue application system

Glu Jet - The flexible glue application system
Glu Jet - The flexible glue application system
Glu Jet - The flexible glue application system

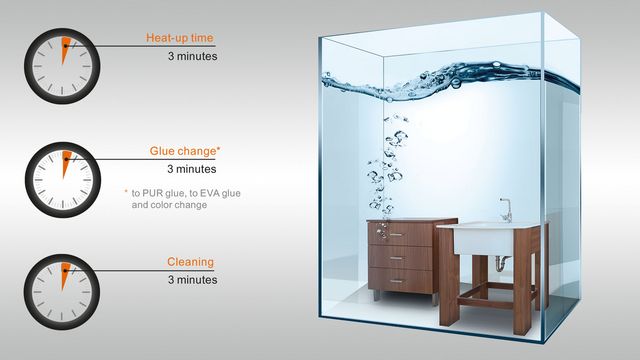

Heat-up, glue change and cleaning require only 3 minutes each

Hardly any other glue application system offers this flexibility with such energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Invisible joints with PUR glue, which can also be used in wet areas, are an obvious choice for HOLZ-HER customers.

Brilliant appearance, regardless of material - Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Pressure unit

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller with motor drive and pneumatic application control. Available with two subsequent pressure rollers. Motor-drive high speed servo-axis available as optional feature.

Pneumatic trimming unit - 60 mm

Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Cutter unit with 6 high speed NC servo-axes

Pneumatic cutter unit

Multi-function cutter unit for flushing cutting edge thicknesses up to 8 mm, radiuses up to R=3 mm (standard R=2 mm) as well as 15° chamfer with automatic pivot.

The various profile settings and fine adjustments can be made on the control panel with interactive graphics.

Further equipment:

  • Diamond tools with long service life and integrated chip guidance
  • Play-free mechanism for 100% repetition accuracy
  • High speed NC servo-axes with fa.s.t. Feature (“set-up in the gap“)
  • The 2 vertical NC axes provide for high precision foil compensation in the 1/100th mm range for high gloss panels with protective foil as well as cutting work alternatively with or without projection
  • Including blow-off nozzles for cleaning sensing areas

Cutter unit with 1 high speed NC servo-axis

Copy cutter unit

Copy cutter unit for corner work up to edge thickness of 3 mm (standard R=2 mm) or alternatively chamfer = 45°. Postforming profiles possible. Operating height 12 to 60 mm

Further equipment:

  • Diamond tool for long service life
  • Integrated vacuum cleaning feature for attachments
  • Linear guides for precision copy work
  • High speed NC servo-axes for optimizing radius contour for thin edging and smaller radiuses
  • High speed NC servo-axes with fa.s.t. Feature (“set-up in the gap“)

Cutter unit with 4 high speed NC servo-axes

Scraper unit

For perfect smoothing of radiuses up to edge thickness of 3 mm (standard R=2 mm) and chamfer = 45° on plastic edging. The various profiles and fine adjustments can be made on the control panel with interactive graphics.

Further equipment:

  • Precision, sintered carbide tools
  • Integrated vacuum cleaning feature for attachments
  • Play-free mechanism for 100% repetitive accuracy
  • High speed NC servo-axes with fa.s.t. Feature (“set-up in the gap“)
  • The 2 vertical NC axes provide for high precision foil compensation in 1/100th mm range for high gloss panels with protective foil
  • Including blow-off nozzles for cleaning sensing areas

Flat scraper with plunge control

Flat scraper

The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications. Can be selected optionally in lieu of the standard flat scraper blade.

Buffing unit

Buffing unit

Polishing for maximum gloss; for complete finishing

Spraying devices

Front and rear spraying units

A release agent is sprayed on to a precisely defined area by special spray nozzles in the entry area. This prevents any glue or contamination residues from adhering. These glue and contamination residues are removed reliably by the spraying unit (for cleaning agent) in the discharge area in combination with the buffing unit.


Technical Details

Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER edgebanders not only helps preserve our environment - it also saves you money.

Learn more


Are you still "rolling" glue or are you already saving?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


References


Further information

Brochures

Simple, fast and sustainable: more details in a downloadable PDF document.

AURIGA brochure (PDF, 3 MB)

Technical data

Open table
